Ubiquiti Lite 8 x RJ45, 4 x PoE+ Gigabit switch
  • Ubiquiti Lite 8 x RJ45, 4 x PoE+ Gigabit switch
  • Ubiquiti Lite 8 x RJ45, 4 x PoE+ Gigabit switch
  • Ubiquiti Lite 8 x RJ45, 4 x PoE+ Gigabit switch
  • Ubiquiti Lite 8 x RJ45, 4 x PoE+ Gigabit switch
Ubiquiti Lite 8 x RJ45, 4 x PoE+ Gigabit switch

Ubiquiti Lite 8 x RJ45, 4 x PoE+ Gigabit switch

€195,00

An 8-port, Layer 2 PoE switch supporting silent fanless cooling.

Layer 2, 8 x RJ45, 4 x 802.3at PoE+, Gigabit Ethernet, 99.6 x 163.7 x 31.7 mm
The USW-Lite-8-PoE is a fully managed Layer 2 switch with eight Gigabit Ethernet ports for your RJ45 Ethernet devices. Four ports also offer auto-sensing 802.3at PoE+ that provide up to a total PoE wattage of 52W for UniFi Access Points or other PoE devices.

Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-Lite-8-PoE offers Layer 2 switching protocols and features. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.

Professional Installation Available
Have your switch professionally installed by our experts.
Email info@starlinkinstaller.ie for delivery and installation at your property.

Dimensions
99.6 x 163.7 x 31.7 mm (4 x 6.4 x 1.3")

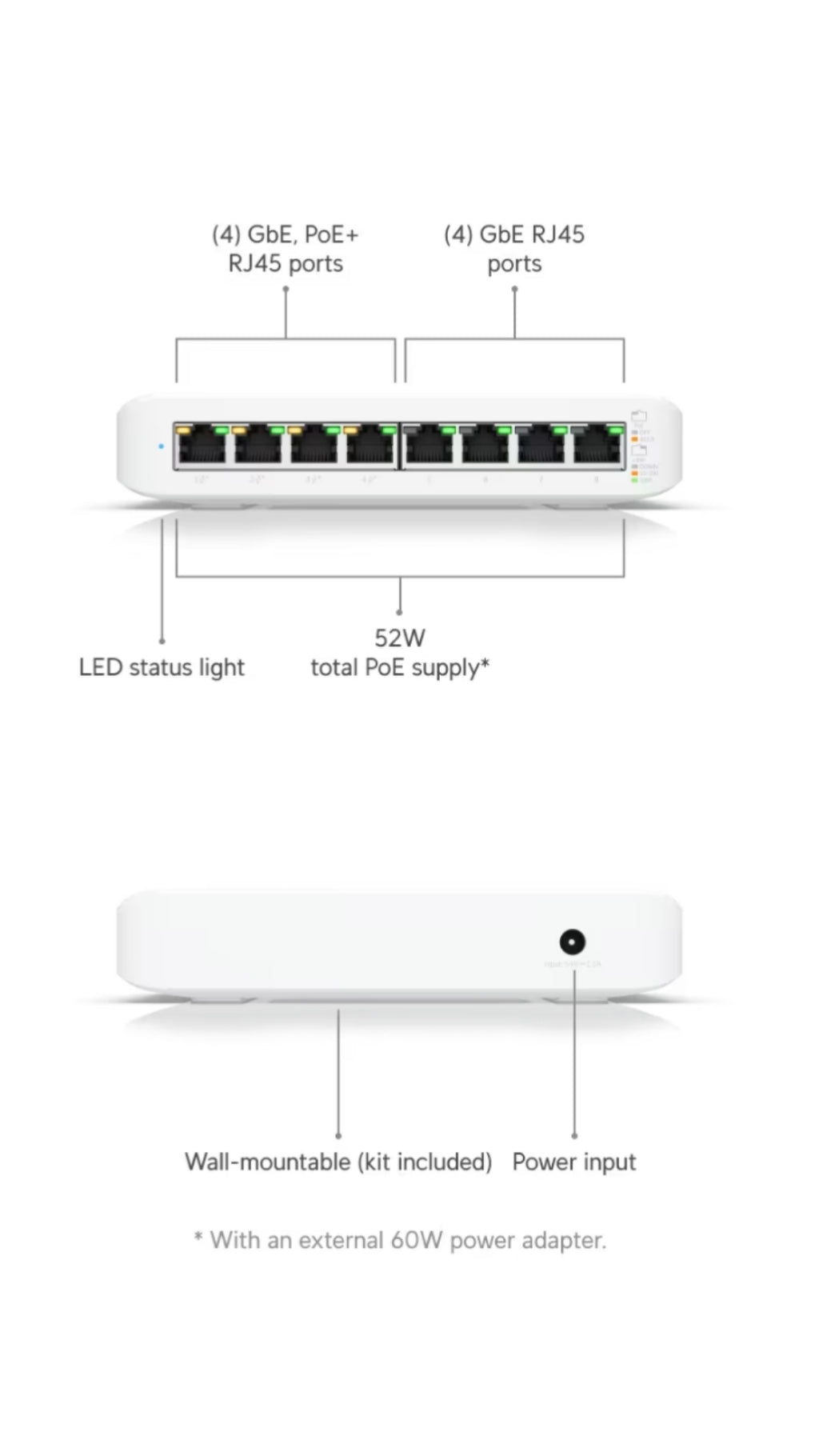

Port Layout

1 GbE RJ45
8 (4 PoE+) (1G/100M/10M)
Max. PoE Output
Up to PoE+
Total PoE Availability
52W

Form Factor
Compact desktop, wall

Switching Capacity
16 Gbps
Total Non-Blocking Throughput
8 Gbps
Forwarding Rate
12 Mpps
Supported VLANs
1,000
MAC Address Table Size
8,000
Packet Buffer Size
0.5 MB
Access Lists

IPv4
128
MAC
128

LACP Port Aggregation
✓
STP & RSTP
✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
✓
IGMP Snooping
✓
802.1X Control
✓
MAC-Based ACLs & Device Isolation
✓
DHCP Snooping & Guarding
✓
Egress Rate Limit
✓
Flow Control
✓
Storm Control
✓
Multicast & Broadcast Rate Limiting
✓
MAC Address Blocking
✓
IP-Based ACLs & Network Isolation
✓
MAC-Based Port Restriction
✓
Port Isolation
✓
Port Mirroring
✓
Jumbo Frames
✓
LLDP-MED
✓
Voice VLAN
✓
Loop Protection
✓
Virtual Network Override
✓

PoE Ports

PoE+
4
Max. PoE Wattage per Port by PSE

PoE+
30W
Max. Power Consumption
8W (Excluding PoE Output) 60W (Including PoE Output)
Power Method
AC/DC Adapter (included)
Power Input Method
DC input
Power Supply
AC/DC, external, 60W
Supported Voltage Range
50—57V DC
Management
Ethernet
Heat Dissipation
27.3 BTU/hr (Excluding PoE Output)
Weight
295 g (10.4 oz)
Enclosure Material
Polycarbonate
Mount Material
Polycarbonate
Ambient Operating Temperature
-15 to 40° C (5 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
NDAA Compliant
✓
Certifications
CE, FCC, IC, Anatel: 04479-21-08356
